Water Loss Management System

Water Loss management System

[ ODA+ WaLMS ]

Manage your water

Water Loss Management System (ODA+SuKYS) Software

        • Geographic Information System [GIS]
        • Subscriber Management Information System [SMIS]
        • Fault Monitoring System [CRM/Alo185]
        • Central Control and Data Acquisition System [SCADA]

It is a separate web-based monitoring and decision support system software that integrates the above databases in an easy-to-manage way through the Administration Panel.


Monitoring System

The 4 key components of the monitoring system will be as listed below:

  • GIS Based Monitoring (Map-based regional infrastructure and superstructure facilities, Administrative Borders, Warehouse and Measurable Sub-Zones)
  • Flow-Pressure Monitoring (Min Night Flow-MNF, Flow, Pressure, Potential Leak Calculation)
  • Water Balance Monitoring (Reporting Based on Water Tanks and Isolated Metering Zones - IWA Water Balance, Water Losses Monitoring)
  • Performance Monitoring (Infrastructure Leakage Index - ILI, Non-Revenue Water - GGS, Failure Frequency Index - ASI, Loss Monitoring - Monthly/Daily)




Relational Diagram of Water Loss Management System with Other Institutional Databases


Water Loss Management System (ODA+SuKYS) Software will be web-based. The system will not have any restrictions in terms of the number of users. It will have integrated working modules listed below as software components:

        1. Website Module
        2. User Authorization Module
        3. Map Module
        4. Regional Monitoring Module
        5. Water Production and Distribution Schemes Module
        6. Performance Monitoring Module

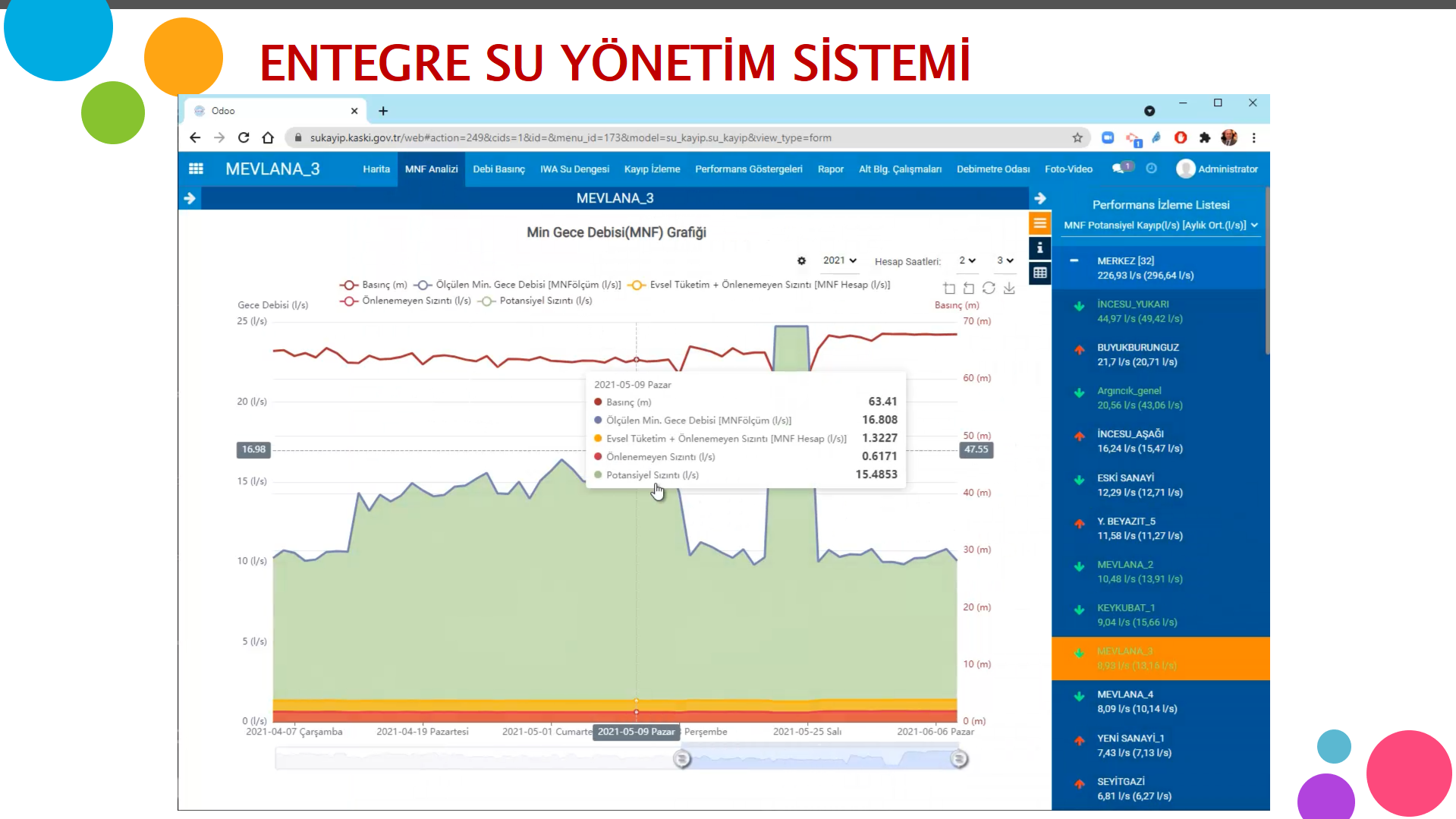

        7. Min Night Flow(MNF) Analysis Module
        8. Flow Pressure Analysis Module
        9. Water Balance Reporting Module
        10. Water Loss Monitoring Module
        11. Performance Indicators Reporting Module
        12. Integrated Sub-Regional Studies Monitoring Module
        13. Flowmeter Chamber Monitoring Module
        14. Reporting Module
        15. Hydraulic Modeling and Simulation Module (Desktop Software)
